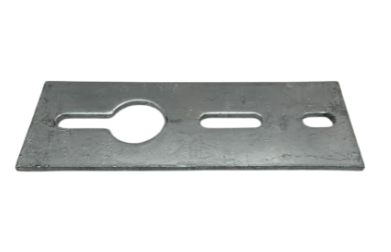

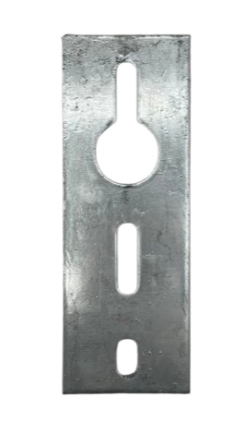

Anchor Keyhole Mount Plate - 1/4" Plate

A strong and economical means of attaching and adjusting dock anchor chains.

This mount plate extends below the dock frame and provides a keyhole which the chain passes through and slots into to lock it's position.  To adjust the chain height just lift the chain link up and out of the slot, pull/release to a new location, then let the chain slip down into the slot to lock it's position.

Its advantage over the Kwikdox Heavy Duty Anchor Bracket is it's uncluttered appearance, and it doesn't stick out from the side of the dock creating a damage hazard for boats.  It's disadvantages are:

• more difficult to raise/lower the chain depth position
• hangs down below the dock creating a possible hazard for the heads of swimmers
• can only accommodate one chain
• slightly weaker

Manufactured in Canada from North American Steel.  Hole pattern matches all Kwikdox (and select other manufacturers) hardware.

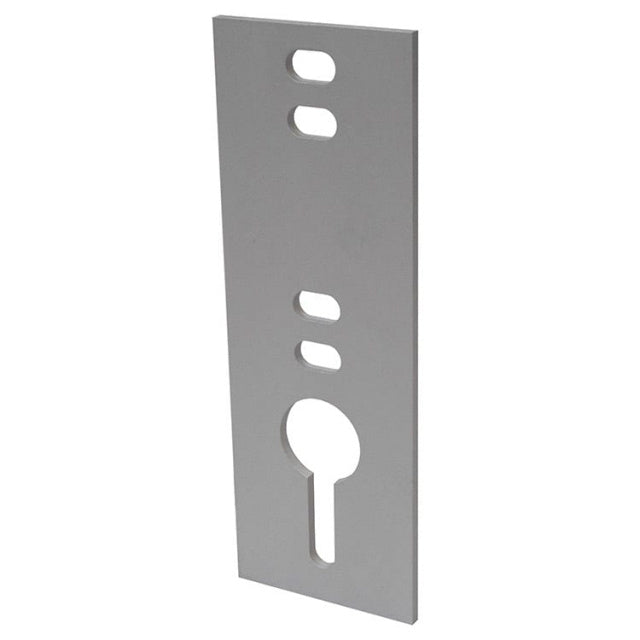

NOTE:  This New and Improved Model now has a rectangular keyhole for smoother adjustment of chain depth, a stronger wider plate, plus four 3/8" mount holes instead of just two.
